Global Finishing Solutions® (GFS) manufactures a large selection of filters for spray booths, washers, ovens and other finishing equipment. All GFS filters are designed for superior performance and are manufactured from high-quality materials to ensure maximum durability. Most GFS products are kept in stock for fast shipping to virtually anywhere in North America.
GFS Wave® filters provide an economical exhaust filtration solution for businesses of all sizes. They feature a convoluted “wave” design that increases surface area to improve depth loading and holding capacity. They minimize paint run-off by capturing and retaining overspray, reducing spray booth floor cleanup while facilitating more efficient filter changes.
| New Part No. | Size | Quantity per Box |
| 1008075 | 20″ x 20″ | 30 |
| 1008077 | 20″ x 25″ | 30 |
| New Part No. | Size | Quantity per Box |
| 1008078 | 20″ x 30′ | 1 roll |
| 1008079 | 24″ x 30′ | 1 roll |
| 1008080 | 30″ x 24′ | 1 roll |
| 1008081 | 30″ x 30′ | 1 roll |
| 1008083 | 30″ x 50′ | 1 roll |
| 1050843 | 30″ x 60′ | 1 roll |
| 1008084 | 36″ x 30′ | 1 roll |
| 1050844 | 36″ x 60′ | 1 roll |
| 1008086 | 40″ x 30′ | 1 roll |
| 1008087 | 45″ x 30′ | 1 roll |
| 1013183 | 45″ x 48′ | 1 roll |
| 1008089 | 48″ x 30′ | 1 roll |
| 1050845 | 48″ x 60′ | 1 roll |
| 1008091 | 54″ x 30′ | 1 roll |
| 1008092 | 60″ x 30′ | 1 roll |
| 1050846 | 60″ x 60′ | 1 roll |
| 1008094 | 80″ x 20′ | 1 roll |
Polyester media excels at capturing paint, resin, glue, teflon, tar, oil, grease and other airborne liquid particles. These GFS exhaust filters are made from one-inch-thick, multi-layered, multi-density polyester for high-capacity capture and air pollution control. All products are UL listed, Class II approved and OSHA compliant.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011603 | 217-006 | 20″ x 20″ | 30 |
| 1011622 | 217-041 | 24″ x 24″ | 25 |
| 1011583 | 216-532 | 72″ x 2″ x 50′ | 1 roll |
| 1017354 | 216-561 | 24″ x 50′ | 1 roll |
| 1017351 | 216-562 | 48″ x 50′ | 1 roll |
| 1017350 | 216-563 | 36″ x 75′ | 1 roll |
| 1017349 | 216-564 | 48″ x 75′ | 1 roll |
| 1017348 | 216-565 | 60″ x 75′ | 1 roll |
Designed for GFS ovens, GFS panel filters filter intake and exhaust air. They capture contaminants that weren’t retained by exhaust filtration media, helping maintain a cleaner working environment. Available in wood or metal frames.
| New Part No. | Old Part No. | Frame | Size | Quantity per Box |
| 1011506 | 217-518 | Metal | 24″ x 24″ x 12″ | 1 |
GFS gold polyester exhaust filters are constructed from multi-layered, multi-density material to provide high-efficiency paint holding capacity. These filters are a cost-effective replacement option for any spray booth.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1008074 | FIL-EPP-2020-G | 20″ x 20″ | 30 |
| 1008076 | FIL-EPP-2025-G | 20″ x 25″ | 30 |
| 1008082 | FIL-ERP-3050-G | 30″ x 50′ | 1 roll |
| 1008085 | FIL-ERP-3650-G | 36″ x 50′ | 1 roll |
| 1008088 | FIL-ERP-4550-G | 45″ x 50′ | 1 roll |
| 1008090 | FIL-ERP-4850-G | 48″ x 50′ | 1 roll |
| 1008093 | FIL-ERP-6050-G | 60″ x 50′ | 1 roll |
GFS fiberglass exhaust filters are optimized to collect paint overspray. Constructed of continuous filament glass fibers with an open-weave pattern, these filters allow airborne particles to penetrate deeply into the two-inch-thick pad to hold more paint. UL listed and Class II approved.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011599 | 217-001 | 20″ x 20″ | 100 |
| 1011600 | 217-002 | 20″ x 25″ | 100 |
| 1011611 | 217-016 | 40″ x 75′ | 1 roll |
| 1011612 | 217-017 | 30″ x 75′ | 1 roll |
| 1011613 | 217-019 | 42″ x 75′ | 1 roll |
| 1011614 | 217-020 | 24″ x 75′ | 1 roll |
| 1011615 | 217-021 | 36″ x 75′ | 1 roll |
| 1011616 | 217-022 | 48″ x 75′ | 1 roll |
| 1011617 | 217-023 | 60″ x 75′ | 1 roll |
| 1011618 | 217-024 | 72″ x 75′ | 1 roll |
| 1011619 | 217-025 | 84″ x 75′ | 1 roll |
| 1011621 | 217-029 | 42″ x 300′ | 1 roll |
| 1011625 | 217-080 | 60″ x 300′ | 1 roll |
| 1011629 | 217-088 | 48″ x 300′ | 1 roll |
| 1011630 | 217-089 | 84″ x 300′ | 1 roll |
| 1011631 | 217-095 | 36″ x 300′ | 1 roll |
GFS intake pads are high-efficiency mesh filters that remove more than 90 percent of particles at five microns. Key features include an internally welded steel frame with a self-sealing gasket for easy fit and internal wire support and heat-sealed seams to prevent media flutter. UL listed and Class II approved.
| New Part No. | Old Part No. | Size | Description | Quantity |
| 1011590 | 216-550 | 20″ x 20″ x 1″ | Intake Diffusion | 24 |
| 1011591 | 216-551 | 24″ x 24″ x 1″ | SFR Filter | 24 |
| 1011604 | 217-010 | 16″ x 20″ x 1″ | Intake Tacky | 24 |
| 1011605 | 217-011 | 16″ x 25″ x 1″ | Intake Diffusion | 24 |
| 1011606 | 217-012 | 20″ x 20″ x 1″ | Intake Tacky | 24 |
| 1011607 | 217-012-Green | 20″ x 20″ x 1″ | Intake Tacky (green) | 24 |
| 1011608 | 217-013 | 20″ x 25″ x 1″ | Intake Tacky | 24 |
| 1011609 | 217-014 | 24″ x 24″ x 1″ | Intake Tacky (rigid metal frame) | 24 |
| 1011505 | 217-200 | 20″ x 48″ x 2″ | Intake | 8 |
| 1006386 | PF-1000 | 20″ x 48″ | Micro Clean (can be used in paint mix rooms) | 12 |
| 1006388 | PF-2000 | 20″ x 48″ | Micro Clean | 15 |
GFS tacky roll media is made from synthetic fibers and resin-bonded with a special adhesive. These intake filters are progressively structured, and the pads have an internally welded steel frame with a self-sealing gasket for easy fit. They’re also self-extinguishing, with a 100 percent fiber coating. UL listed and Class II approved.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011689 | 216-234 | 55″ x 96″ | 2 rolls |
| 1011690 | 216-237 | 55″ x 120″ | 2 rolls |
| 1011581 | 216-528 | 50″ x 90′ | 1 roll (ME1 polyester media) |
| 1011582 | 216-531 | 50″ x 30′ | 1 roll (ME1 polyester media) |
Designed for use with SmartCure® control systems, the filter material can withstand temperatures up to 220 degrees Fahrenheit. The polyester fiber is bonded with a polyvinyl chloride binder featuring a flame-retardant treatment.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1007998 | FMI-CUSTOM | By the square foot | |
| 1008000 | FMI21036 | 21″ x 36″ | 2 |
| 1021055 | FMI21069 | 21″ x 69″ | 2 |
| 1008001 | FMI21072 | 21″ x 72″ | 1 |
| 1021056 | FMI21105 | 21″ x 105″ | 2 |
| 1021057 | FMI21141 | 21″ x 141″ | 2 |
| 1008004 | FMI21144 | 21″ x 144″ | 2 |
| 1008008 | FMI37036 | 37 1/2″ x 36″ | 2 |
| 1008009 | FMI37144 | 37 1/2″ x 144″ | 2 |
| 1008010 | FMI38062 | 38″ x 62″ | 1 |
| 1018331 | FMI51097 | 51″ x 97″ | 1 |
| 1013941 | FMI51108 | 51″ x 108″ | 1 |
| 1014023 | FMI51121 | 51″ x 121″ | 2 |
| 1008011 | FMI61120 | 61″ x 120″ | 2 |
| 1008016 | FMI61149 | 61″ x 149″ | 2 |
| 1008013 | FMI64108 | 64″ x 108″ | 2 |
| 1008014 | FMI64120 | 64″ x 120″ | 2 |
| 1008015 | FMI64144 | 64″ x 144″ | 2 |
| 1008016 | FMI64149 | 64″ x 149″ | 2 |
| 1018332 | FMI69097 | 69″ x 97″ | 1 |
| 1018473 | FMI69121 | 69″ x 121″ | 1 |
| 1008017 | FMI75030 | 75″ x 30″ | 2 |
| 1008018 | FMI75036 | 75″ x 36″ | 2 |
| 1021058 | FMI73069 | 73″ x 69″ | 1 |
| 1021059 | FMI73105 | 73″ x 105″ | 1 |
| 1021060 | FMI73141 | 73″ x 141″ | 1 |
| 1018473 | FMI69121 | 69″ x 121″ | 1 |
| 1008018 | FMI75036 | 75″ x 36″ | 2 |
| 1056005 | FMI75090 | 75″ x 90″ | 2 |
| 1008019 | FMI75120 | 75″ x 120″ | 2 |
| 1008020 | FMI75144 | 75″ x 144″ | 2 |
| 1008021 | FMI75149 | 75″ x 149″ | 1 |
| 1008022 | FMI78246 | 78 3/4″ x 246″ | 1 |
| 1008023 | FMI81036 | 81″ x 36″ | 2 |
| 1013505 | FMI81072 | 81″ x 72″ | 1 |
| 1008024 | FMI81108 | 81″ x 108″ | 1 |
| 1008026 | FMI81144 | 81″ x 144″ | 1 |
AdvanceCure® Accelerated Airflow Systems require dedicated filters, due to their differently sized air intake. Air entering the system is filtered, ensuring clean air blows on freshly painted vehicles. Each filter is made of high-loft, non-woven expanded polyester featuring 99.84 percent average arrestance. UL listed and Class II approved.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1010333 | ADV-4MW-FMI1116 | 10.875″ x 16.25″ | 10 |
| 1007996 | FMI-ACCT0811 | 10.5″ x 7.75″ (corner module without lights) | 10 |
| 1007997 | FMI-ACCT2671 | 13″ x 9.5″ (corner module with lights) | 10 |
| 1014080 | FMI-AC041811 | 15.25″ x 24.25″ (corner module) | 10 |
| 1007999 | FMI-WBTA2362 | 17″ x 7.5″ x 5.25″ | 10 |
| 1019524 | FMI-AC1515 | 14.625″ x 14.626″ | 10 |
| 1018261 | FMI-ACCT1637 | 15.5″ x 36.625″ | 2 |
GFS provides a high-efficiency, three-stage filtration system with superior holding capacity. This system captures high volumes of contaminants, such as paint and dust, with up to 99.9 percent filter efficiency at five microns. It delivers cost savings compared to other systems and meets NESHAP requirements.

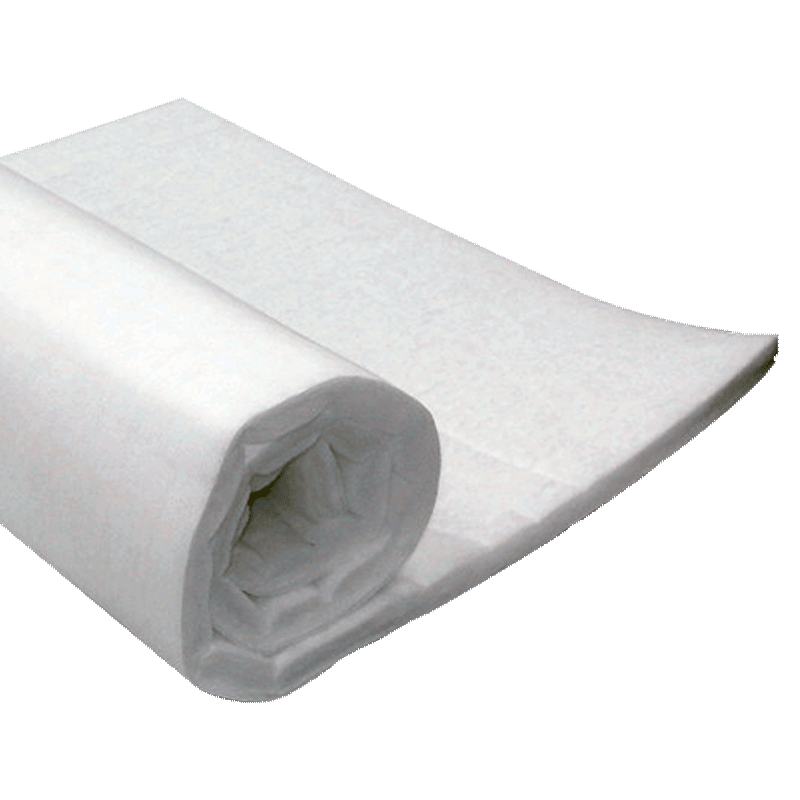

Air enters the arrestor rolls through multi-layered polyester media made of lofted denier fiber. Air exhausts through heavily needled media that densifies it, weighing 1.2 ounces per square foot.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011570 | 216-502 | 36″ x 50′ | 1 roll |
| 1011571 | 216-503 | 45″ x 50′ | 1 roll |
| 1011578 | 216-512 | 50″ x 50′ | 1 roll |
| 1011583 | 216-532 | 72″ x 50′ | 1 roll |
| 1011586 | 216-539 | 45″ x 75′ | 1 roll |
| 1011584 | 216-535 | 72″ x 75′ | 1 roll |
| 1011587 | 216-541 | 102″ x 75′ | 1 roll |
| 1011588 | 216-543 | 120″ x 50′ | 1 roll |
| 1011589 | 216-547 | 54″ x 75′ | 1 roll |
| 1017349 | 216-564 | 48″ x 75′ | 1 roll |
| 1017348 | 216-565 | 60″ x 75′ | 1 roll |

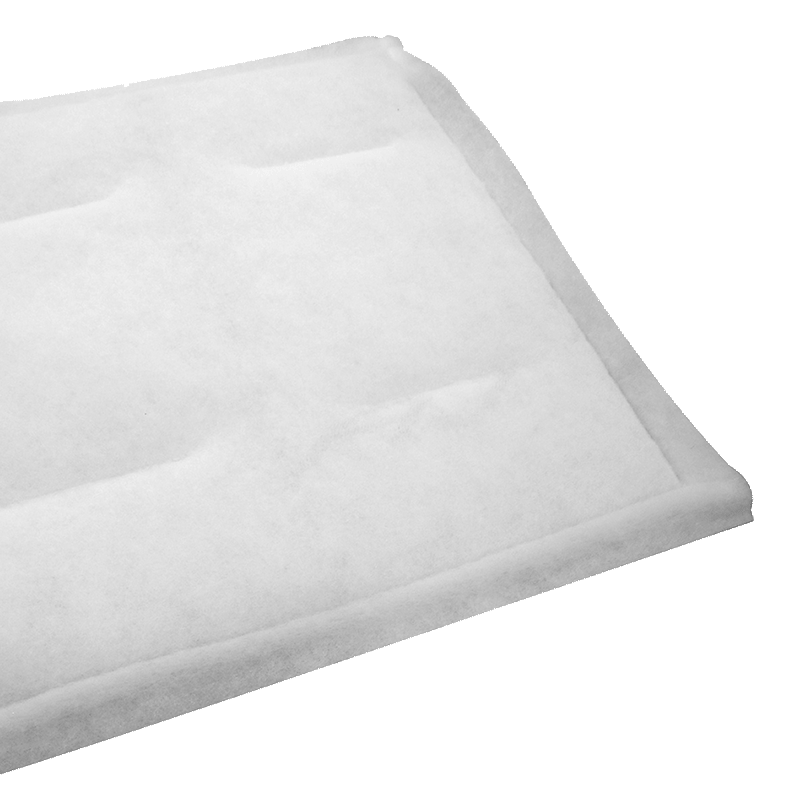

The filter features two layers of tackified media sealed together so the tackified sides touch in the center. Air enters through multi-layered, multi-density polyester with a heavy, non-migrating tackifier. Air exhausts through heavily needled polyester media, densified up to a quarter-inch-thick with a weight of 0.42 ounces per square foot.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011569 | 216-501 | 20″ x 20″ | 24 |
| 1011580 | 216-517 | 24″ x 24″ | 24 |
Bag filters help capture overspray to increase system efficiency. Each filter is made out of a composite of prefilter, melt-blown and spun-bound fibers. The pockets are sewn together with two heat seals on the perimeter, forming three air channels in each pocket. The pockets are placed in a galvanized metal header containing a sealing agent, eliminating the possibility of paint bypass.
| New Part No. | Size | Quantity per Box |
| 1011573 | 20″ x 20″ x 12″ (6-pocket) | 1 |
| 1011579 | 24″ x 24″ x 12″ (6-pocket) | 1 |
| 1033525 | 20″ x 20″ x 12″ (6-pocket) | 1 |
GFS Wave® filters provide an economical exhaust filtration solution for businesses of all sizes. They feature a convoluted “wave” design that increases surface area to improve depth loading and holding capacity. They minimize paint run-off by capturing and retaining overspray, reducing spray booth floor cleanup while facilitating more efficient filter changes.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1008084 | FIL-ERP-3630-W | 36″ x 30′ | 1 roll |
| 1008087 | FIL-ERP-4530-W | 45″ x 30′ | 1 roll |
| 1008089 | FIL-ERP-4830-W | 48″ x 30′ | 1 roll |
| 1008091 | FIL-ERP-5430-W | 54″ x 30′ | 1 roll |
| 1013183 | FIL-ERP-4548-W | 45″ x 48′ | 1 roll |
| 1008083 | FIL-ERP-3050-W | 30″ x 50′ | 1 roll |
The filter features two layers of tackified media sealed together so the tackified sides touch in the center. Air enters through multi-layered, multi-density polyester with a heavy, non-migrating tackifier. Air exhausts through heavily needled polyester media, densified up to a quarter-inch-thick with a weight of 0.42 ounces per square foot.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011569 | 216-501 | 20″ x 20″ | 24 |
| 1011580 | 216-517 | 24″ x 24″ | 24 |

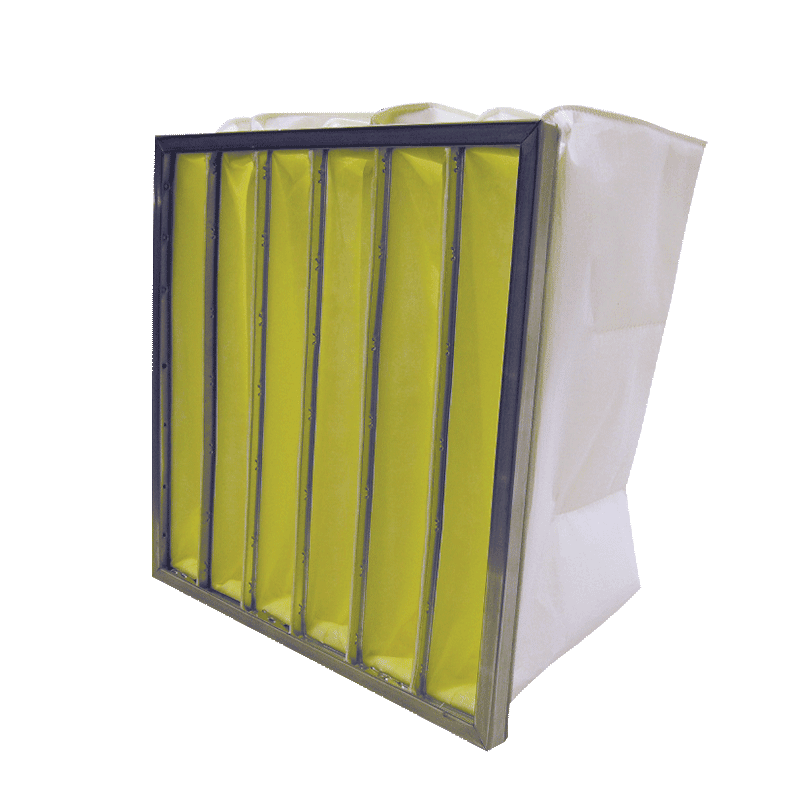

Bag filters help capture overspray to increase system efficiency. They’re made out of a composite of prefilter, melt-blown and spun-bound fibers. The pockets are sewn together with two heat seals on the perimeter, forming three air channels in each pocket. The pockets are placed in a galvanized metal header containing a sealing agent, eliminating the possibility of paint bypass.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011696 | 216-500 | 20″ x 20″ x 15″ (2-pocket) | 1 |
| 1011573 | 216-505 | 20″ x 20″ x 12″ (6-pocket) | 1 |
| 1011579 | 216-516 | 24″ x 24″ x 12″ (6-pocket) | 1 |
| 1033525 | 216-061 | 20″ x 20″ x 12″ (6-pocket) | 1 |
GFS Wave® filters provide an economical exhaust filtration solution for businesses of all sizes. They feature a convoluted “wave” design that increases surface area to improve depth loading and holding capacity. They minimize paint run-off by capturing and retaining overspray, reducing spray booth floor cleanup while facilitating more efficient filter changes.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1008084 | FIL-ERP-3630-W | 36″ x 30′ | 1 roll |
| 1008087 | FIL-ERP-4530-W | 45″ x 30′ | 1 roll |
| 1008089 | FIL-ERP-4830-W | 48″ x 30′ | 1 roll |
| 1008091 | FIL-ERP-5430-W | 54″ x 30′ | 1 roll |
| 1013183 | FIL-ERP-4548-W | 45″ x 48′ | 1 roll |
| 1008083 | FIL-ERP-3050-W | 30″ x 50′ | 1 roll |
Part No. 1023869 – 20″ x 20″ x 4″, 6 filters per box
Part No. 1023869 – 24″ x 24″ x 12″
| New Part No. | Description | Quantity per Box |
| 1024725 | 19.375″ x 19.375″ x 11.5″ | 1 |
| 1013872 | 20.875″ X 20.875″ X 11.5″ | 1 |
| 1013638 | 23.375″ x 23.375″ x 11.5″ | 1 |
GFS AMU filters clean both the air entering the unit and the fabric, ensuring the AMU has a consistent source of replacement air.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1010774 | 405213 | 23 1/4″ x 47″ x 9″ (6-pocket) | 4 |
| 1010775 | 405214 | 23 1/2″ x 47″ (framed 5-pocket) | 4 |
| 1010776 | 405216 | 19 1/4″ x 37″ x 4″ (high capacity) | 4 |
| 1010777 | 405219 | 19 1/2″ x 36 3/4″ (6-pocket) | 4 |
| 1008028 | FMP2336 | 23 1/2″ x 35 5/8″ (4-pocket) | 4 |
GFS paper mesh filters combine baffle and strainer-type particle collection. The front layers have large baffle openings, with interior layers featuring progressively smaller diamond designs and an optional back layer of dense, non-woven polyester. These products are constructed of layers of slit and UL listed, Class II approved kraft media.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011666 | 216-088 | 20″ x 20″ x 1″ | 60 |
| 1011667 | 216-095 | 42″ x 2″ x 30′ | 1 |
Pleated cardboard is a collapsible paper filter with round holes to trap paint particles and reduce replacement costs. Contaminated air is drawn into the system by the booth fan and makes several direction changes as it travels through the filter, generating kinetic energy that deposits paint particles on the filter’s surfaces.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1006498 | PEF-330-K1 | 3′ x 30′ | 1, 3 or 60 |
These filters are made of seven-layer expanded paper with a white polyester backing to maximize strength and efficiency. They offer excellent dust-holding capacity.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1008390 | EF-2020-K40 | 20″ x 20″ x 2″ | 40 |
| 1008391 | EF-2025-K40 | 20″ x 25″ pad | 40 |
| 1008392 | EF-3125-K2 | 31″ x 25′ roll | 2 |
| 1008393 | EF-4253-K1 | 42″ x 53′ roll | 1 |
GFS filter pads are made of non-woven cotton/synthetic blend media for medium efficiency. They feature radial pleat construction for minimum pressure and are UL listed, CUL listed and Class I and Class II approved.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011654 | 216-003 | 20″ x 20″ x 4″ | 6 |
| 1011655 | 216-011 | 20″ x 20″ x 2″ | 1 |
| 1011656 | 216-013 | 20″ x 25″ x 2″ | 1 |
| 1023869 | 216-511 | 20″ x 20″ x 4″ | 6 |

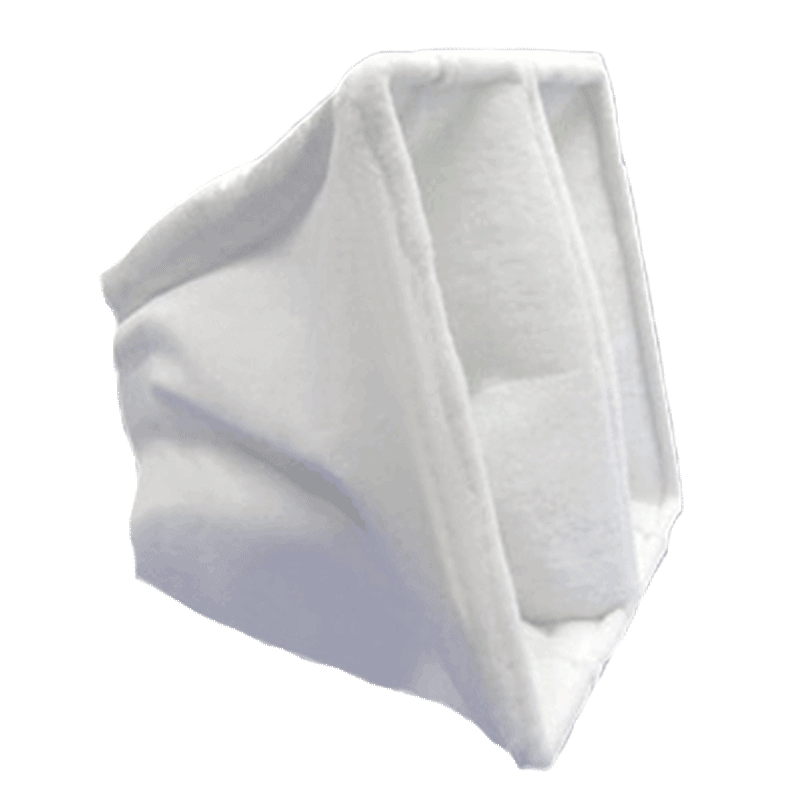

GFS powder and dust bag filters have pockets with individual edges and internal heat-sealed dividing bars to prevent stitch holes. The pockets are assembled through individual modular design, providing exceptionally high dust-holding capacity and a long lifespan.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011572 | 216-504 | 20″ x 20″ x 15″ (2-pocket) | 1 |
| 1011573 | 216-505 | 20″ x 20″ x 12″ (6-pocket) | 1 |
GFS high-efficiency cartridge filters collect powder dust in powder recovery booths and safe air dust collection systems. They are high-strength and feature a flame-retardant treatment.
| New Part No. | Old Part No. | Size | Quantity per Box |
| 1011682 | 216-202 | 26″ x 12 3/4″ (metal and wood) | 1 |
| 1011683 | 216-203 | 26″ x 12 3/4″ (cellulose) | 1 |
| 1011684 | 216-204 | 26″ x 12 3/4″ (fiberous) | 1 |
| 1022982 | 216-208 | 52″ x 12 3/4″ | 1 |
GFS products are designed and manufactured to meet the applicable requirements of various industry-recognized codes and standards.
Please be aware that local requirements may vary from national codes. GFS recommends consulting with your local authority before purchasing paint booths or other finishing equipment.
GFS engineers regularly contribute to the advancement of codes and standards that affect the industries that we work in. Several of our engineers serve on various NFPA Technical Committees responsible for key finishing industry standards.
Overloaded filters compromise spray booth performance, making the paint finish look sloppy and uneven. Dirty filters may also be flammable, jeopardizing the safety of your technicians. Your shop could be in violation of regulations if your filters aren’t clean.
In an extreme scenario, dirty filters could take your booth offline for an extended period. Most shops dedicate a lot of floor space to their paint booth and would face considerable challenges if it suddenly stopped generating revenue.
Three variables determine how often spray booth filters should be changed: process, environment and equipment.
Process refers to how long air flows through the filters. In general, busier shops require more frequent filter changes.
Environment refers to what kind of air your booth filters draw from outside. Shops in particularly dusty areas require more filter changes.
Equipment is what kind of filters you have. Filter lifespan is highly variable between models but remains consistent within a given filter type, meaning you can anticipate when a filter change is necessary.
GFS has a vertical manufacturing process, so we maintain complete control over everything from initial design to fabrication. We also install our products and offer comprehensive service and preventative maintenance programs, allowing us to identify and address any issues quickly and efficiently.
With more than 50 years of experience in the spray booth industry, GFS has unparalleled insight into the unique needs of the businesses that depend on our products. Whether you’re in automotive refinishing, industrial manufacturing, aviation, woodworking or defense, our expert team can help you find the right booth filter for your needs.
GFS actively contributes to regulatory guidelines across all of the industries we work in, so we’re always up to date on the latest codes and guidelines from organizations like the Occupational Safety and Health Administration (OSHA) and National Fire Protection Association (NFPA). All of our products are fully compliant with national safety standards.
Yes. Routine filter changes are included in our service and preventative maintenance programs. Our technicians perform routine maintenance, including checking your filters and swapping them out as necessary. Alternatively, most filters are quick and easy to change yourself.
Our spray booth expertise extends to more than 20 brands of booths besides ours, so we’re a great partner whether you own a GFS spray booth or not. With our vast resources, we can source filters to fit your business’ unique needs, and we’ll gladly answer any questions you have regarding filter upgrades.
GFS offers tailored support to every customer. Get started today by submitting a request for a parts and filters quote. You’ll be connected with a knowledgeable local distributor who can guide you throughout the ordering process.
Require immediate assistance? Contact us to connect with a finishing expert in your area. We look forward to working with you.
Let us know your product requirements, and we will put you in touch with a distributor in your area.
Discover the technical advancements that have heightened the importance of the prep area
