How Industrial Manufacturers Can Benefit From a Recirculating Spray Booth

industrial galvanized paint booth

To recirculate air or not to recirculate? That is the question facing industrial manufacturers needing a new paint booth that offers temperature and humidity controls for specific liquid coatings.

Recirculating spray booths provide energy savings by reducing the volume of make-up and exhaust air for the booth while maintaining accurate control of climate and airflow. They also offer capital expense savings, as air handling and abatement equipment are reduced in size when using a recirculation booth.

While climate-controlled recirculating spray booths can be as much as three times the cost of non-climate-controlled, standard paint booths, they can be cheaper in the long run because of the energy savings from air recirculation.

How Do Recirculating Spray Booths Work?

Typically used for custom industrial and aerospace applications, where climate control is essential for the painting process, recirculating paint booths heat, cool, de-humidify or humidify only the incoming fresh air. In many applications, the incoming fresh air accounts for just 20 to 30 percent of the total air that moves through a recirculating spray booth.

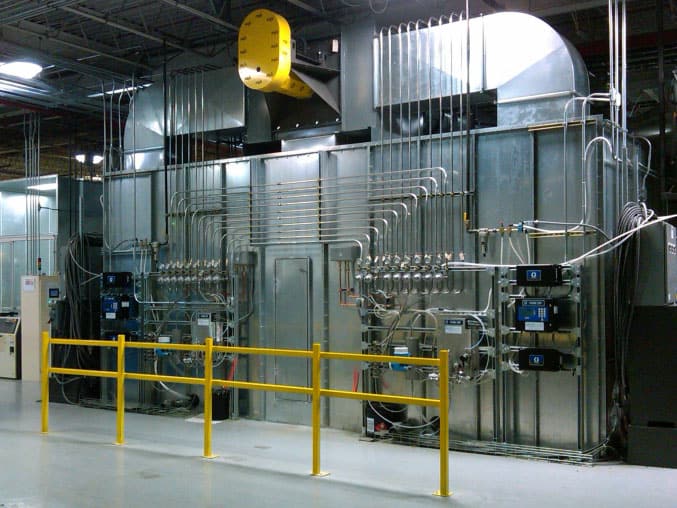

Recirculating paint booth

In Global Finishing Solutions (GFS) Recirculating Spray Booths, the Consta-Flow System — consisting of a variable frequency drive (VFD), differential pressure gauge and sensing probes — maintains constant airflow in the booth, automatically adjusting the recirculation fan to the changing conditions of the exhaust filters. Meanwhile, the Auto-Balance System maintains a constant pressure in the booth’s cabin, regardless of filter loading. The result is a spray booth with consistent airflow through the spray area and a perfect booth balance.

Safety Precautions With Recirculating Paint Booths

When spraying in a recirculating paint booth, even when using robots or fixed or electrostatic spray guns, air must still be exhausted to the outside. While recirculating spray booths remove 99.9 percent of particulates down to 0.5 microns, volatile organic compounds (VOCs) still exist and must be removed before they are concentrated above safe levels.

According to NFPA 33, a paint booth “must provide adequate ventilation to control the concentration of flammable vapors below 25 percent of the lower explosive limit (LEL).” GFS designs recirculating paint booths to meet fire safety standards, including alarms and shutdowns to prevent the spray booth from exceeding the LEL.

Industrial hygienists determine the appropriate level of personal protective equipment (PPE) required for painters, based on the chemical concentrations in the paint booth. PPE may consist of a full-body suit, with the painter plugged into an uncontaminated air source, so that the painter is not breathing the VOCs inside the spray booth. Some industrial manufacturers take their painters out of the equation by utilizing robotics.

Despite the additional safety precautions necessary when operating a recirculating spray booth, it is an attractive option for surface finishers because of the numerous advantages, including tighter temperature and humidity control; energy cost savings; and improved quality of coatings.
