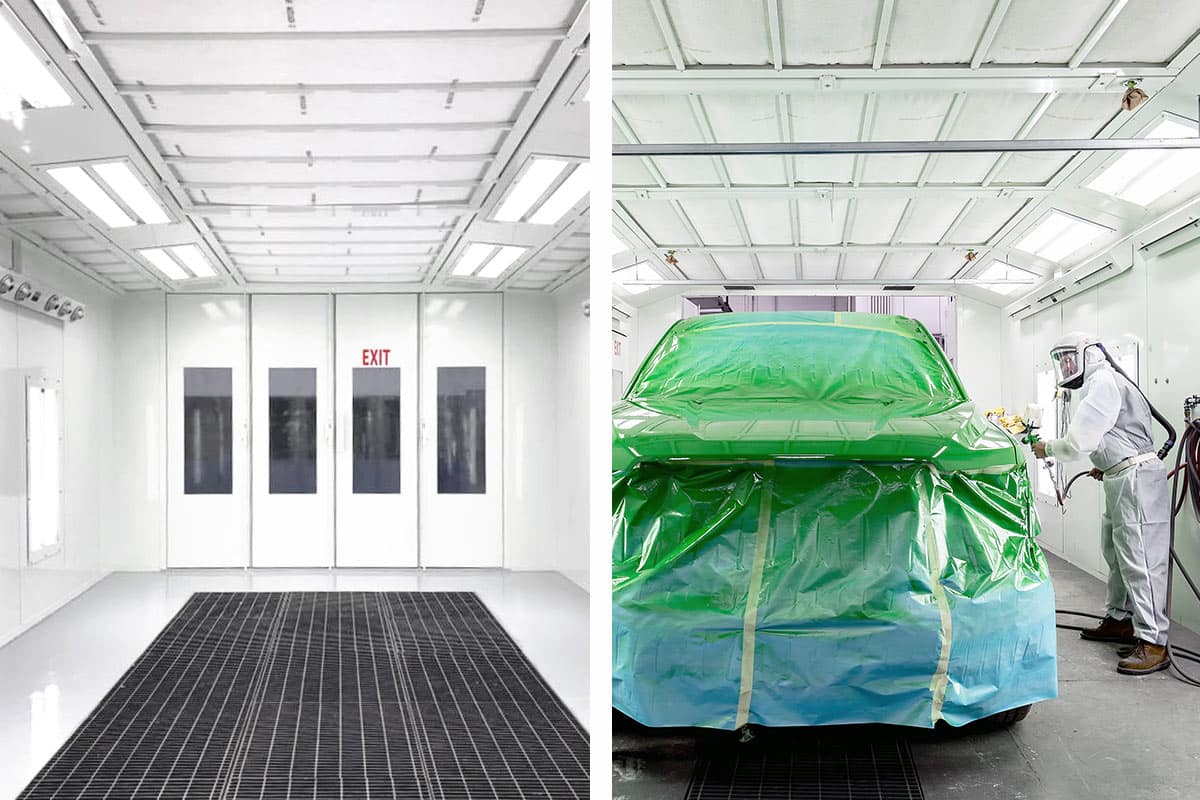

Ultra Ceiling Options

Achieving Even Distribution of Air Throughout Your Spray Booth

Global Finishing Solutions® (GFS) paint booths are designed for the most consistent airflow through the booth. The majority of our automotive refinish booths feature a 2-foot-high, ceiling-over-plenum design. The 2-foot height provides more room for building sufficient air volume. A full-width ceiling plenum allows for less static pressure and even air distribution from the plenum to the cabin.

It is important to provide a clean, even flow of air around the vehicle or parts being painted. A large plenum builds sufficient air volume necessary to create the even, linear, plenum-to-pit airflow.

PAINT BOOTHS FROM GLOBAL FINISHING SOLUTIONS

Global Finishing Solutions® (GFS) is dedicated to providing high-quality spray booths to a wide variety of industries — including aerospace, automotive refinish, manufacturing and woodworking businesses. GFS strives to meet the unique needs of every customer with pre-engineered and custom solutions for paint application across the globe.

Ultra® Paint Booth Ceiling Options

Controlled Airflow Ceiling

A key feature of GFS’ premium Ultra® spray booths is the Controlled Airflow Ceiling. This patented, exclusive ceiling design was engineered to maximize the effectiveness of downdraft airflow models.

The main airflow zone creates a protective envelope of air around the vehicle, while secondary airflow zones prevent overspray from collecting on the booth walls and keep contaminants away from the paint job. In between these airflow zones are strategically placed ceiling lights. Lights are located directly above the sides of the vehicle being painted for optimal illumination. GFS’ Controlled Airflow Ceiling systems also feature hinged filter racks that swing down, for inserting new filters into the ceiling filter grid.

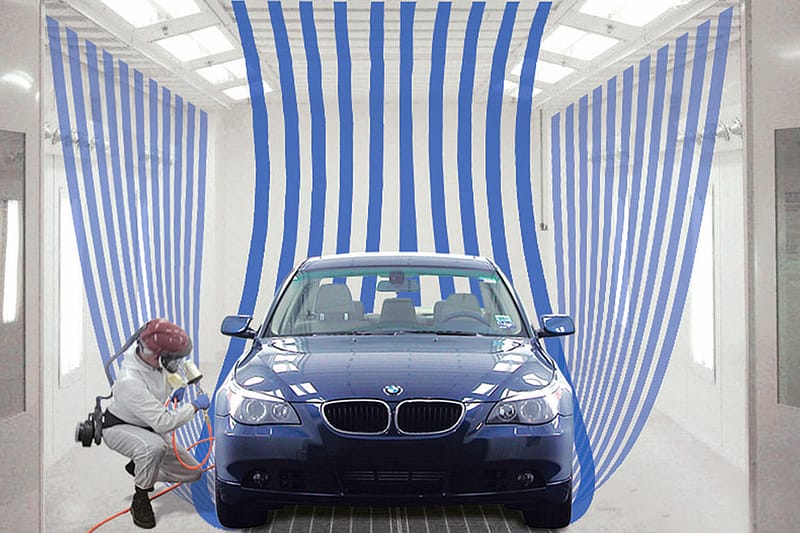

GFS patented CAF ceiling for GFS Ultra Paint Booths and CTOF

High-Performance Airflow Ceiling

A classic design, GFS’ High-Performance Airflow Ceiling is simple in its construction and concept, yet yields impressive performance. The full-filtered ceiling provides excellent air filtration and contamination control, and integrated hip-style ceiling lights illuminate where you need it most. The High-Performance Airflow Ceiling also features easy replacement for inserting new filters into the ceiling filter grid.

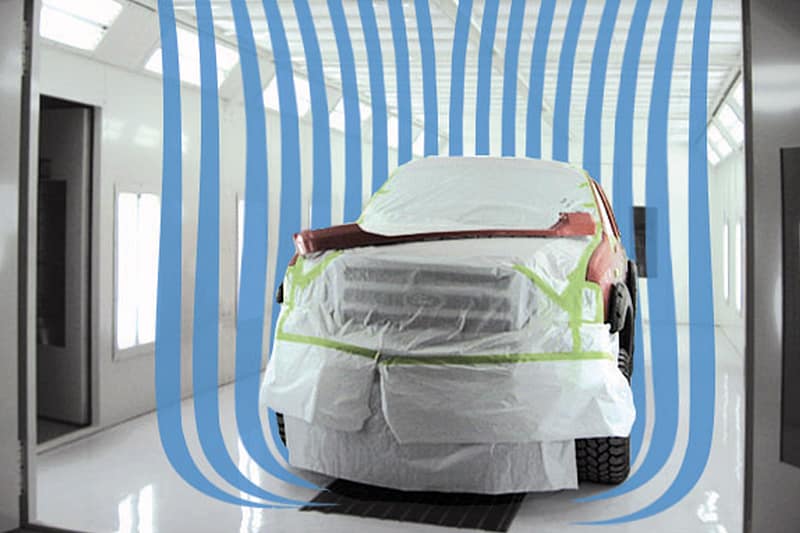

GFS HPAC ceiling for Ultra Paint Booths

GFS products are designed and manufactured to meet the applicable requirements of various industry-recognized codes and standards.

  • Reference NFPA 33 and Chapter 24 of the International Fire Code (IFC) for spray applications using flammable and combustible materials
  • Reference NFPA 86 and Chapter 30 of the IFC for curing and drying applications
  • Many components and product lines are ETL and ETL-C listed. The ETL or ETL-C mark is proof of compliance with North American safety standards, including UL, NFPA, OSHA and more
  • A UL or CUL listing verifies that Underwriters Laboratories has tested GFS’ product and determined that it meets their stringent safety and performance requirements

Please be aware that local requirements may vary from national codes. GFS recommends consulting with your local authority before purchasing paint booths or other finishing equipment.

GFS engineers regularly contribute to the advancement of codes and standards that affect the industries that we work in. Several of our engineers serve on various NFPA Technical Committees responsible for key finishing industry standards.
