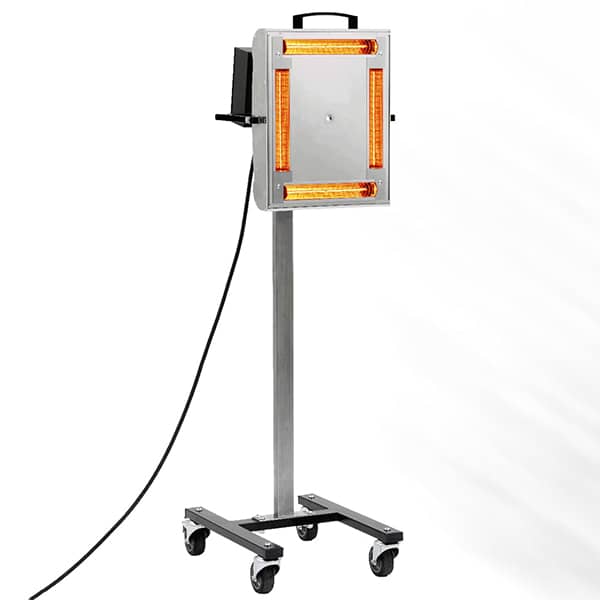

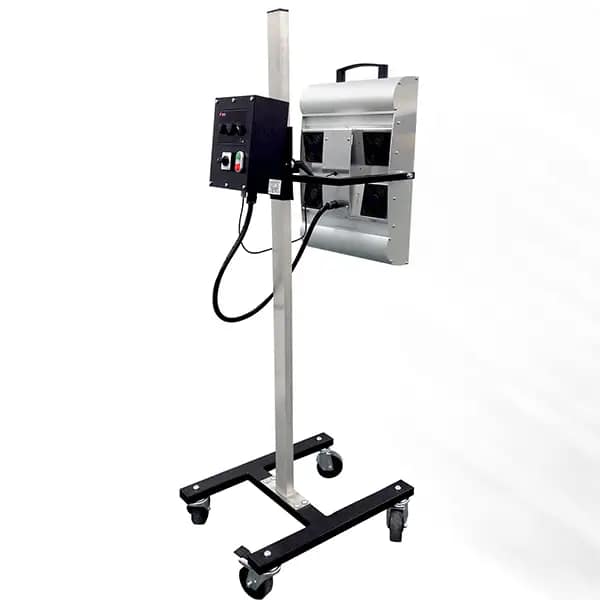

REVO Spot Curing System
Accelerated Infrared Curing Unit

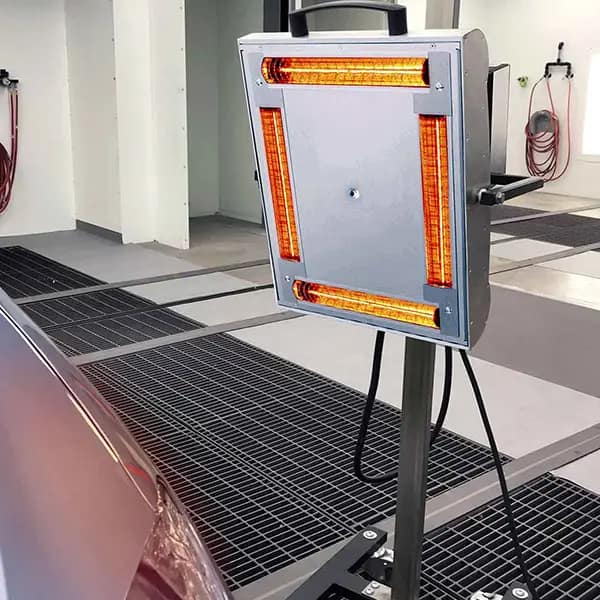

Significantly reduce primer cure time with the REVO Spot from Global Finishing Solutions (GFS). This impressive tool is the ideal solution to quickly cure small, 3-by-3-foot areas. Available on a rolling cart, the single-cassette REVO Spot can be effortlessly moved into any paint booth, prep station or virtually any area in a shop. In addition to curing body filler, as well as spray-on and roll-on primer, this unit is well suited for applications like aluminum repair, bumper repair and dent removal.
- Cures 2- to 4-hour primer in 6 to 8 minutes, helping get 1 more car to the paint department per day
- Temperature sensor automatically adjusts the intensity of the lamps to maintain a consistent temperature regardless of the substrate underneath, ensuring that you never overcure or undercure a coating
- Unit stands on a strong, durable cart that is easy to maneuver and takes up a minimal amount of valuable floor space
- 208-230V / 1Ph / 30 amps. Unit comes pre-plugged with the correct plug.
Ships from Osseo, Wisconsin, 54758 to the contiguous United States in 1-3 business days. For shipping to Alaska, Hawaii and outside of the United States, please call GFS Parts & Filters Sales at 800-848-8738 or email [email protected].
Recommended Parameters
| Application |
Cure Temp |
Cure Time |
| Body Filler |
140 |
3 Minutes |
| Primer |
158 |
8 Minutes |
| Base Coat |
140 |
3 Minute |
| Clear Coat |
194 |
8 Minutes |
