Ultra XS Paint Mix Room

ULTRA® XS paint mix room

The Ideal Companion to the Ultra XS Paint Booth

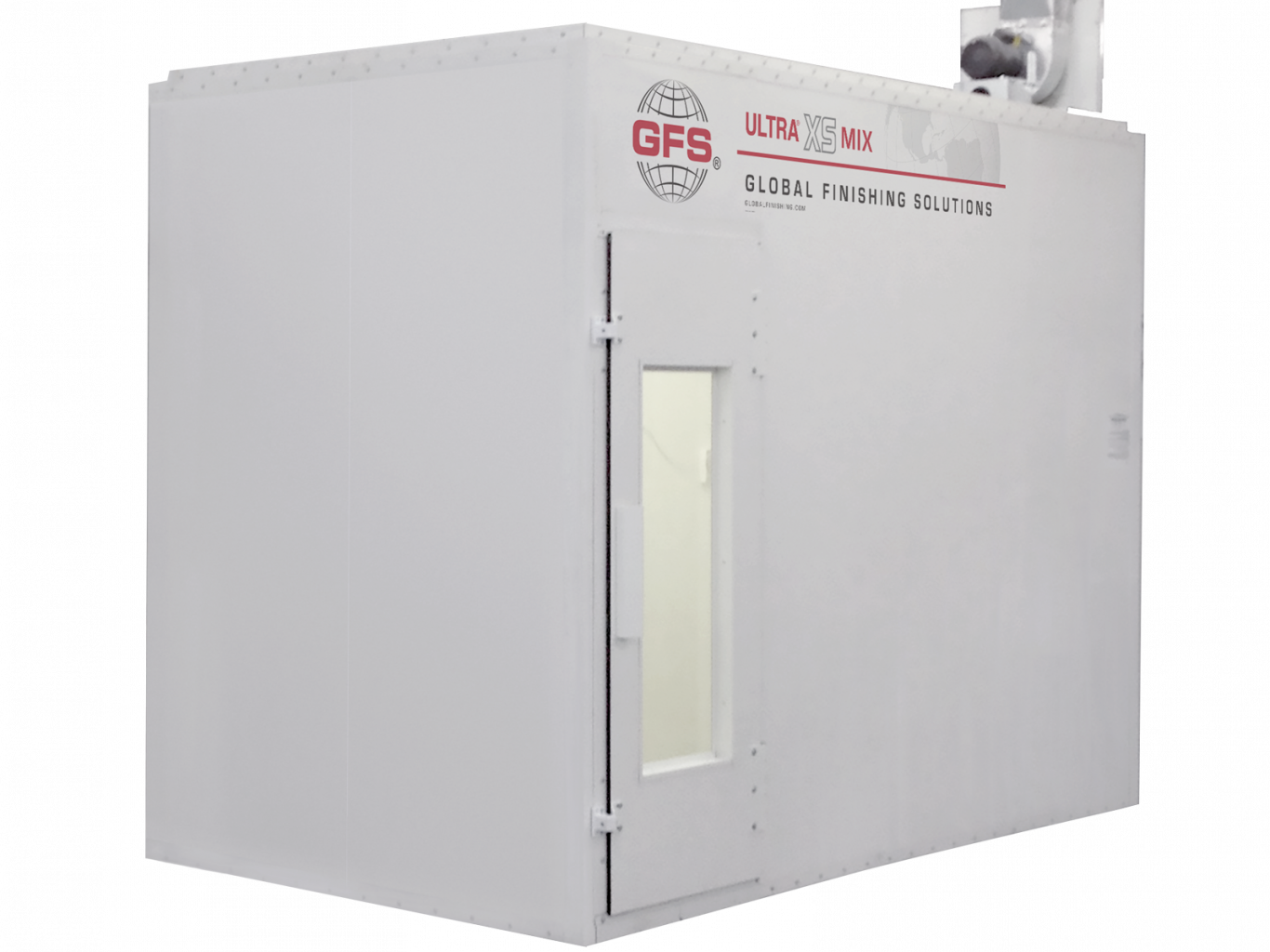

Ultra XS Mix Room

ULTRA XS mix room


Ultra XS Paint Mix Rooms from Global Finishing Solutions® (GFS) provide a safe, controlled environment for all of your paint mixing processes. Harmful fumes are removed from the mix room with semi-downdraft airflow, which is powered by an exhaust fan that pulls in fresh, filtered air and removes hazardous vapors, keeping the mixing process contaminant-free. A 4-inch, integrated spill containment keeps spills contained in one area and eliminates the need for an additional curb.

Ultra XS Mix Rooms feature single-skin design and are the perfect companions to GFS’ Ultra XS Paint Booth and single-skin Performer Paint Booths.

Features & Options

The following features come standard with Ultra XS Mix Rooms:

4-inch spill containment
White pre-coated galvanized steel
Single-skin panels
Personnel door with observation window
Exhaust blower with 1/2 hp motor (120V, 1-phase)
Light switch and fan disconnect
3-by-5-foot PIG Grippy Mix Room Mat

The following options can be added to the Ultra XS Mix Room:

Pressurizing blower with 1/2 hp motor (120V, 1-phase)
Door cover (required to connect mix room to booth)
Observation window
Additional access door
Mix Room heater
Exhaust stack kit
Rotating booth access table
Control panel
Code Compliance

GFS guarantees that our products meet or exceed all of the applicable codes related to the equipment. Our engineers regularly follow and contribute to the advancement of codes and standards that affect the industries that we work in. One of our engineers currently serves on the NFPA Technical Committee on Finishing Processes, a key standard in the finishing industry.

OSHA – Occupational Safety and Health Administration
NFPA – National Fire Protection Association
ETL – Electrical Testing Labs
EPA – Environmental Protect Agency
ICC – International Code Council


The amount of flammable or combustible liquid stored in Paint Mix Rooms must be within the following limits, per NFPA 33:

  • Paint Mix Rooms within 6 feet of the spray area may contain up to 2 gallons per square foot of enclosure floor area, but the combined quantities of liquids in the spray area and mix room shall not exceed 120 gallons
  • Up to 60 gallons may be stored in the spray area
  • Paint Mix Rooms farther than 6 feet from the spray area may contain up to 2 gallons per square foot of enclosure floor area, but shall not exceed 300 gallons
  • If more than one Paint Mix Room is installed, the total quantity of liquids shall not exceed the amounts outlined above
  • Additional limits may be applicable based upon the amount of flammable or combustible liquids present elsewhere in the building

The most common questions associated with paint storage and use are answered, watch now.

access turntable

An easy way to move paint supplies in and out of an automotive paint booth is with a Rotating Booth Access Turntable. Installed into the wall connecting your paint booth and mix room, this GFS-exclusive booth accessory allows for the quick transfer of premixed paint and supplies. One technician can be mixing paint or preparing supplies while another technician is spraying, increasing productivity and throughput.

Access Turntable between mix room and booth

Want to learn more about the ultra xs mix room?

Let us know your product requirements, and we will put you in touch with a distributor in your area.
