Ultra® XS Closed-Top Open-Front (CTOF) Booth

Deluxe, Single-Skin Automotive Paint Prep Station

Description

The Ultra^® XS Closed-Top Open-Front (CTOF) Booth from Global Finishing Solutions^® (GFS) is an affordable, all-in-one area for prepping and painting vehicles. Single-skin walls provide cost savings without compromising quality. Choose from downdraft or semi-downdraft airflow, in a wide variety of sizes to meet your shop’s needs.

Ultra® XS CTOF Booth Product Info

Airflow	Controlled Airflow Ceiling standard on single-bay models. The full-filtered ceiling provides excellent air filtration and contamination control High-Performance Airflow Ceiling standard on dual-bay models Learn More
Lighting	Ultra XS CTOF Booths feature four-tube light fixtures. All GFS light fixtures are ETL and ETL-C listed, and come complete with energy-efficient LED lamps.
Single-Skin Panels	Vertical and horizontal C-channel stiffeners, combined with nut-and-bolt construction, provide unmatched strength and rigidity on Ultra XS CTOF Booths. Exterior flanges provide a smooth interior surface for cleaning.
Heater	The Ultra XS CTOF Booth has an option of GFS’ BT1200 heat unit or exclusive, roof-integrated SpaceSaver^®heat system. The BT1200 heater can be placed on the side or rear of the booth, and is available in forced-dry models. Ideal for space-conscious businesses, the SpaceSaver heater effectively compacts a high-efficiency heat system into the same area as the booth plenum. Learn More
Controls	Standard on Ultra XS CTOF Booths, the Engage^®control panel features a simplified, easy-to-use touch screen interface with enhancements such as improved temperature and pressure control and alarm tracking for better, more reliable booth performance. Learn More
Construction	Manufactured at GFS’ U.S. facility, Ultra XS CTOF Booths are made with single-skin, galvanized steel panels that are coated on both sides with a white, baked-on polyester topcoat, creating a rust-resistant cabin. Vertical wall panels reduce the number of joints and seams in the cabin’s construction, leaving you with a stronger, longer-lasting booth with a smooth fit and finish.

GFS booths can be customized to meet your unique specifications. The following options can be added to an Ultra XS CTOF Booth:

Custom sizing

Three-wing classic product doors with observation windows or four-wing premium product doors with observation windows

Site-specific exhaust ductwork

Heater customization (gas pressure/type, heater placement)

Two- or three-row exhaust pit (downdraft only)

LOGIC 3 or LOGIC 4 control panel

Control panel modifications

Raised basement (downdraft only)

Sidewall light fixtures and observation windows

AdvanceCure® Accelerated Airflow System

Ultra XS CTOF Booths come in downdraft or semi-downdraft models:

24' Single Bay - Downdraft (SpaceSaver)

Heat System	SpaceSaver
Internal Dimensions (W x H x L)	14′ x 9′ x 24′
External Dimensions (W x H x L)	15′ 5″ x 14′ 7″ x 24′ 5″
# of Light Fixtures	6
Single-Row Pit Length	21′

24' Dual Bay - Downdraft (BTFD)

Heat System	BTFD
Internal Dimensions (W x H x L)	24′ x 9′ x 24′
External Dimensions (W x H x L)	24′ 8″ x 11′ x 24′ 8″
# of Light Fixtures	12 or 16
Single-Row Pit Length	21′ (2)

24' Dual Bay - Downdraft (SpaceSaver)

Heat System	SpaceSaver
Internal Dimensions (W x H x L)	24′ x 9′ x 24′
External Dimensions (W x H x L)	24′ 8″ x 14′ 7″ x 24′ 8″
# of Light Fixtures	12 or 16
Single-Row Pit Length	21′ (2)

27' Single Bay - Downdraft (SpaceSaver)

Heat System	SpaceSaver
Internal Dimensions (W x H x L)	14′ x 9′ x 27′
External Dimensions (W x H x L)	15′ 5″ x 14′ 7″ x 27′ 8″
# of Light Fixtures	8
Single-Row Pit Length	24′

27' Single Bay - Semi-Downdraft (SpaceSaver)

Heat System	SpaceSaver
Internal Dimensions (W x H x L)	14′ x 9′ x 27′
External Dimensions (W x H x L)	15′ 5″ x 14′ 7″ x 27′ 8″
# of Light Fixtures	8

27' Dual Bay - Semi-Downdraft (BTFD)

Heat System	BTFD
Internal Dimensions (W x H x L)	24′ x 9′ x 27′
External Dimensions (W x H x L)	24′ 8″ x 11′ x 27′ 8″
# of Light Fixtures	16

27' Dual Bay - Semi-Downdraft (SpaceSaver)

Heat System	SpaceSaver
Internal Dimensions (W x H x L)	24′ x 9′ x 27′
External Dimensions (W x H x L)	24′ 8″ x 14′ 7″ x 27′ 8″
# of Light Fixtures	16

GFS products are designed and manufactured to meet the applicable requirements of various industry-recognized codes and standards.

Reference NFPA 33 and Chapter 24 of the International Fire Code (IFC) for spray applications using flammable and combustible materials
Reference NFPA 86 and Chapter 30 of the IFC for curing and drying applications
Many components and product lines are ETL and ETL-C (cETLus) listed. The cETLus mark is proof of compliance with North American safety standards, including UL, NFPA, CSA and more
A UL or CUL (cULus) listing verifies that Underwriters Laboratories has tested GFS’ product and determined that it meets their stringent safety and performance requirements

Please be aware that local requirements may vary from national codes. GFS recommends consulting with your local authority before purchasing paint booths or other finishing equipment.

GFS engineers regularly contribute to the advancement of codes and standards that affect the industries that we work in. Several of our engineers serve on various NFPA Technical Committees responsible for key finishing industry standards.

Want to Learn More About Ultra® XS CTOF Booths?

Let us know your product requirements, and we will put you in touch with a distributor in your area.

Customer Success Stories

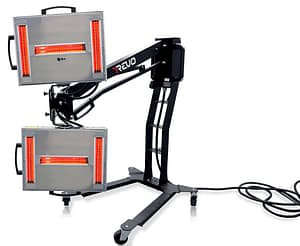

GFS Releases REVO Rapid MC1 Accelerated Curing Technology

The recently released REVO Rapid MC1 from GFS fills the gap between the single-cassette REVO Spot and the dual-cassette, dual-sensor REVO Rapid MC2 and OR2 models. Featuring two cassettes with a single set of sensors, the REVO Rapid MC1 provides a more affordable solution for curing filler and coatings on two different vehicles or panels at the same time.

“There are a lot of smiles in the body shop” after expansion of 106-year-old dealership

For more than a century, Michael Cuene’s family has bought, sold and repaired cars. In the latest expansion of his flagship dealership, all signs pointed to GFS being the best fit for Broadway Automotive Collision Center. And in 2022, a massive rebuild — featuring four paint booths, a dual-bay prep station and two paint mix rooms from GFS, as well as 42 service bays and a drive-thru estimating station — has Cuene feeling good about the future of his business.

Ultra Paint Booths & REVO Systems Helping Rhode Island Shop Overcome Backlog

With more than 100 vehicles awaiting repair at any time and a shop expansion in the works, Cranston Collision needed equipment that would increase production and deliver the high-quality finishes their customers have come to expect. A pair of Ultra XR Paint Booths from GFS and local distributor Collision Center Design has given Dennis Gamba the tools to help Cranston Collision discover their full potential.

“Purchasing this paint booth was one of the best decisions we’ve made”

As Colorwheels Northwest expanded their business, a 20-year-old preowned paint booth no longer was adequate for their growing needs. Efficiency and reliability were what Jason Ross wanted in a capital equipment investment in 2021, and he discovered that — and more — from GFS with a dual-bay Ultra XD Paint Booth.

Ultra® XS Closed-Top Open-Front (CTOF) Booth

Deluxe, Single-Skin Automotive Paint Prep Station

Description

Process

Most Commonly Used For

COLLECTION

Ultra® XS CTOF Booth Product Info

Want to Learn More About Ultra® XS CTOF Booths?

Customer Success Stories

Related Products

Ultra® XS Paint Mix Room

Ultra® XD Paint Booth

Aluminum Repair Station

Ultra® XS Paint Booth

Ultra® XS Closed-Top Open-Front (CTOF) Booth

Deluxe, Single-Skin Automotive Paint Prep Station

Description

Process

Most Commonly Used For

COLLECTION

Ultra® XS CTOF Booth Product Info

Want to Learn More About Ultra® XS CTOF Booths?

Customer Success Stories

Related Products

Ultra® XS Paint Mix Room

Ultra® XD Paint Booth

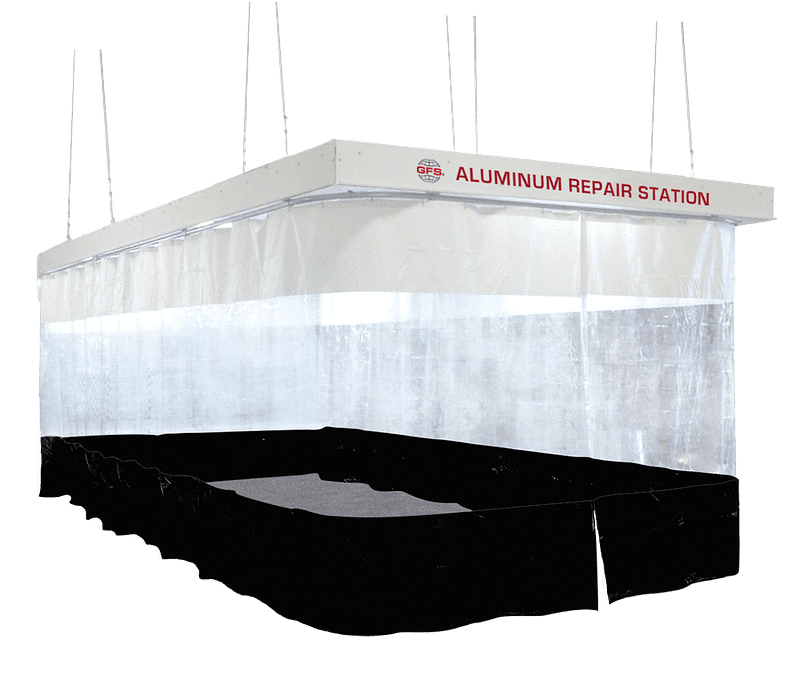

Aluminum Repair Station
