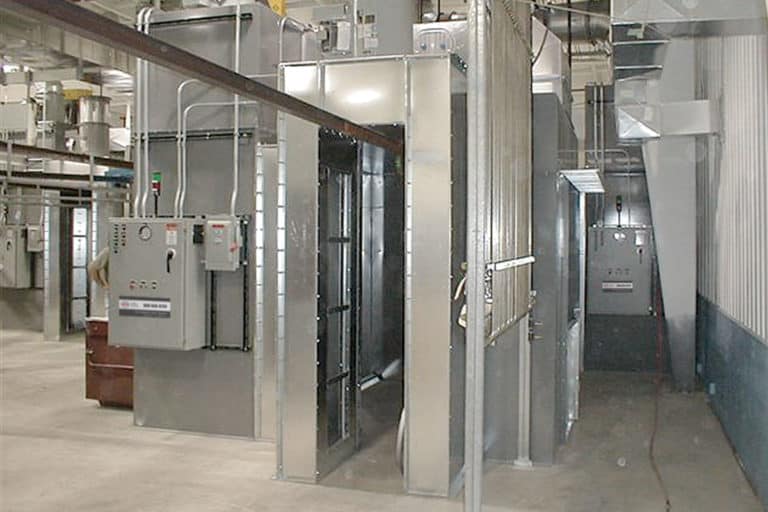

Recirculating Paint Booths

Accurate Airflow and Climate Control for Industrial Manufacturers

Description

Recirculating Paint Booths from Global Finishing Solutions® (GFS) provide accurate control of climate and airflow, while offering the most efficient operating system possible. This type of booth is often used in conjunction with temperature and humidity controls, regenerative thermal oxidizers and other VOC abatement equipment.

Process

Most Commonly Used For

COLLECTION

Recirculating Paint Booth Product Info

Air Balancing A key feature of GFS Recirculating Spray Booths is the Consta-Flow system. This system maintains constant airflow in the booth, by automatically adjusting the recirculation fan to the changing conditions of the exhaust filters. Consta-Flow consists of a VFD, differential pressure gauge and sensing probes.
Lighting GFS Recirculating Paint Booths feature integrated, four-tube, inside-access light fixtures. All GFS light fixtures are ETL and ETL-C listed and come complete with energy-efficient LED lamps.
Fans & Motors GFS Recirculating Spray Booths include a recirculating fan and three-phase, TEFC, tri-voltage motor(s) with variable pitch pulley, as well as a tube axial exhaust fan(s).
Personnel Door GFS Recirculating Paint Booths include a personnel door with panic latch and clear, tempered glass observation window, as well as a solid personnel door in the exhaust chamber (less window).
Four-Stage Exhaust Filtration GFS Recirculating Spray Booths feature a four-stage exhaust filtration system. The first two stages (roll media and fiberglass filter pads) are in the exhaust plenum. The third and fourth stages (final filters) are in the recirculating plenum. This filtration system effectively removes 99.9 percent of particulate down to 0.5 microns.
Construction

GFS Recirculating Paint Booths are constructed with single-skin, 18-gauge, G-90 galvanized steel. Pre-punched booth panels and nut-and-bolt assembly take the guesswork out of installing a paint booth and provide more structural integrity.

Recirculation is an effective method of reducing operating costs of a paint booth. GFS Recirculating Spray Booths reduce operating costs by using less energy and exhausting less air. At a recirculation rate of 80:20, energy use is reduced by a factor of five.

In addition to energy savings, a recirculation booth can also provide capital expense savings, since air handling and abatement equipment is reduced in size when using a recirculation booth.

The following are examples of the energy savings you could see in a recirculating paint booth:

Automatic Paint Spray Booths with Conveyor Opening

Recirculating Airflow16,000 CFM
Exhaust Airflow4,000 CFM
Total Airflow20,000 CFM

By recirculating 16,000 CFM, this system reduces exhaust by 80 percent



Manual Paint Spray Booths with Conveyor Opening

Recirculating Airflow5,000 CFM
Exhaust Airflow3,000 CFM
Total Airflow8,000 CFM

By recirculating 5,000 CFM, this system reduces exhaust by 62.5 percent

GFS products are designed and manufactured to meet the applicable requirements of various industry-recognized codes and standards.

  • Reference NFPA 33 and Chapter 24 of the International Fire Code (IFC) for spray applications using flammable and combustible materials
  • Reference NFPA 86 and Chapter 30 of the IFC for curing and drying applications
  • Many components and product lines are ETL and ETL-C listed. The ETL or ETL-C mark is proof of compliance with North American safety standards, including UL, NFPA, OSHA and more
  • A UL or CUL listing verifies that Underwriters Laboratories has tested GFS’ product and determined that it meets their stringent safety and performance requirements


Please be aware that local requirements may vary from national codes. GFS recommends consulting with your local authority before purchasing paint booths or other finishing equipment.

GFS engineers regularly contribute to the advancement of codes and standards that affect the industries that we work in. Several of our engineers serve on various NFPA Technical Committees responsible for key finishing industry standards.
