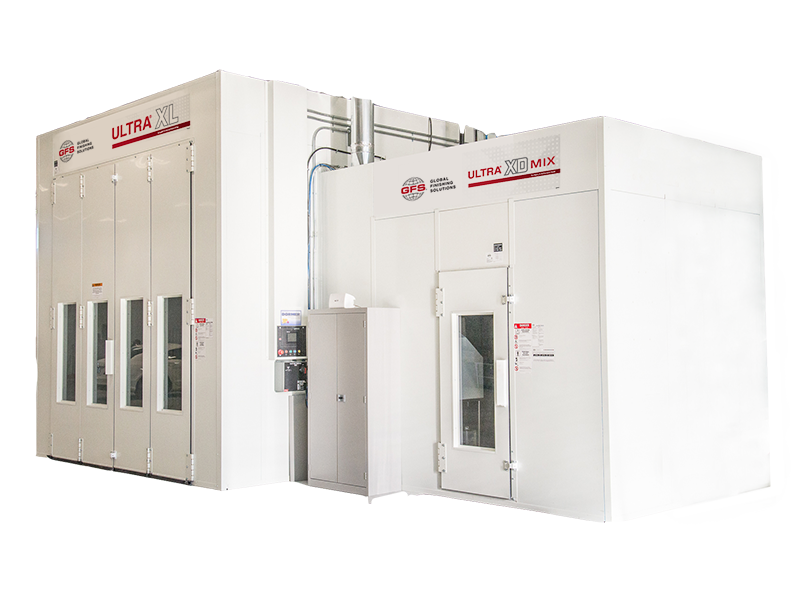

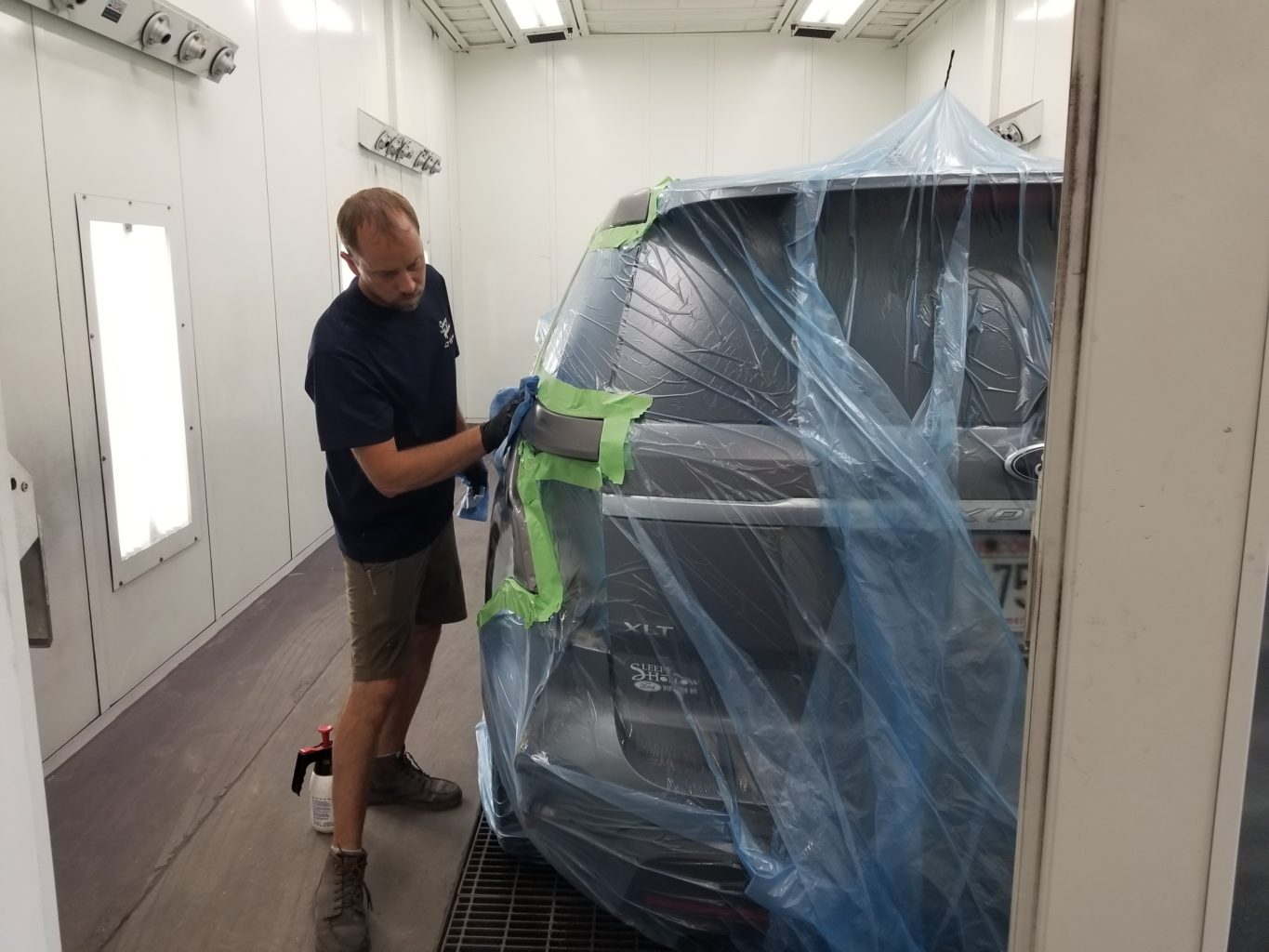

Ultra® XL paint booth

Automotive Spray Booth for Oversized Vehicles

spray booth

Ultra XL

oversized TRUCK Paint Booth

With a 12-foot-high ceiling designed for painting Sprinter vans, commercial vehicles and full-size pickup trucks, Ultra XL Paint Booths bring the performance you expect from the Ultra Paint Booth line to an extended range of vehicle sizes and heights. With premium brightness, contamination control, energy efficiency, and single- or dual-skin construction, the Ultra XL sprinter van paint booth is the perfect solution for oversized paint jobs.

Features

Airflow

Exclusive to GFS, the Controlled Airflow Ceiling on Ultra XL paint booths maximizes the effectiveness of downdraft airflow and increases the booth’s overall spray zone with a full-width ceiling plenum.The main airflow zone in the Controlled Airflow Ceiling creates a protective envelope of air around the vehicle, while secondary airflow zones protect booth walls from overspray and keep contaminants out of the paint job.

Lighting

Ultra XL Paint Booths feature four-tube sidewall lights and premium angled ceiling light fixtures, integrated into the Controlled Airflow Ceiling and located directly above the vehicle for optimal illumination. Light fixtures are ETL and ETL-C listed, and come complete with T8 ballasts and color-corrected tubes.

Doors

A four-wing, dual-skin product door — with four observation windows — and one personnel door come standard with each pre-engineered Ultra XL Paint Booth. Doors feature heavy-duty hinges for long-lasting performance.

Heater

GFS’ Ultra XL truck paint booth offers the flexibility of choosing from two different heat units – GUL2000 or BT 1200 heat system. Both heaters include dual VFDs and automatic pressure control.

Energy Savings

Shops can save up to 60 percent in electricity and 75 percent in fuel costs with economy mode, which automatically ramps the booth down and runs on idle when the booth is not in use. Providing further energy savings, SmartFlash on optional Logic controls allows up to 90 percent of the air to be recirculated during flash mode.

Construction

Manufactured at our U.S. facility, Ultra XL oversized paint booths are made with dual-skin insulated, galvanized steel panels that are coated on both sides with a white, baked-on polyester topcoat, creating a rust-resistant cabin. Vertical wall panels reduce the number of joints and seams in the cabin’s construction, leaving you with a stronger, longer-lasting booth with a smooth fit and finish.


More Features

Single-row pit
Choice of single- or dual-skin construction
Four-wing, dual skin product door
One personnel door
Choice of GFS’ GUL2000 or BT1200 heat system


BOOTH Options

All of GFS’ booths can be customized to meet your unique specifications. The following options can be added to an Ultra XL booth:

AdvanceCure® Accelerated Airflow System
Two- or three-row pit upgrade
Drive-thru configuration
LOGIC 3 or LOGIC 4 controls
Additional sidewall lights
Raised basement (adds 13 in. to overall height of the paint booth)
Six-tube light fixtures
LED lamps or light reflectors


BOOTH SPECS

Heat SystemBTRC or GUL
Internal Dimensions (W xH x L)14′ x 12′ x 27′
External Dimensions (W xH x L)14′ 5″ x 14′ x 27′ 5″
6-Tube Ceiling Lights8
6-Tube Sidewall Lights6
Dual-Row Pit Length24′
Heat SystemBTRC or GUL
Internal Dimensions (W xH x L)14′ x 12′ x 30′
External Dimensions (W xH x L)14′ 5″ x 14′ x 30′ 5″
6-Tube Ceiling Lights10
6-Tube Sidewall Lights6
Dual-Row Pit Length24′

Code Compliance

GFS guarantees that our products meet or exceed all of the applicable codes related to the equipment. Our engineers regularly follow and contribute to the advancement of codes and standards that affect the industries that we work in. One of our engineers currently serves on the NFPA Technical Committee on Finishing Processes, a key standard in the finishing industry.

OSHA Logo
NFPA Logo
ETL C logo
EPA logo
ICC Logo
Want to learn more about the Ultra xl paint booth?
Let us know your product requirements, and we will put you in touch with a distributor in your area.
