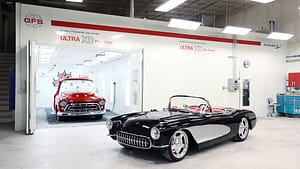

A versatile, end-to-end finishing environment, the Ultra® XD Closed-Top Open-Front (CTOF) Booth from Global Finishing Solutions® (GFS) allows for vehicles to be filled, primed, sealed, painted and cured in one location.
The Ultra XD CTOF Booth is an ideal complement to GFS’ top-of-the-line paint booths. With dual-skin walls and superior construction, airflow and lighting, the Ultra XD CTOF is a premium environment for prepping and painting.
| Airflow | Ultra XD CTOF Booths come standard with GFS’ High-Performance Airflow Ceiling in downdraft or semi-downdraft airflow models. The full-filtered ceiling provides excellent air filtration and contamination control. |
| Lighting | Ultra XD CTOF Booths feature four-tube, hip-style light fixtures. All GFS light fixtures are ETL and ETL-C listed, and come complete with energy-efficient LED lamps. |
| Dual-Skin, Insulated Panels | Pre-coated, dual-skin, insulated panels on Ultra XD CTOF Booths provide a smooth fit and finish with no exposed wires or cables. Insulated panels cut down on noise and reduce ambient heat outside of the booth, while keeping heated air inside the cabin. |
| Heater | The Ultra XD CTOF Booth has an option of GFS’ BT1200 heat unit or exclusive, roof-integrated SpaceSaver® heat system. The BT1200 heater can be placed on the side or rear of the booth, and is available in forced-dry models. Ideal for space-conscious businesses, the SpaceSaver heater effectively compacts a high-efficiency heat system into the same area as the booth plenum. |
| Controls | Standard on Ultra XD CTOF Booths, the Engage® control panel features a simplified, easy-to-use touch screen interface with enhancements such as improved temperature and pressure control and alarm tracking for better, more reliable booth performance. |
| Construction | Manufactured at GFS’ U.S. facility, Ultra XD CTOF Booths are made with dual-skin, insulated, galvanized steel panels that are coated on both sides with a white, baked-on polyester topcoat, creating a rust-resistant cabin. Vertical wall panels reduce the number of joints and seams in the cabin’s construction, leaving you with a stronger, longer-lasting booth with a smooth fit and finish. |
| Self-supporting structure design |
| Solid back wall panels |
| Front curtain(s) |
| Divider curtain(s) for dual-bay models |
| Personnel door with observation window |
GFS booths can be customized to meet your unique specifications. The following options can be added to an Ultra XD CTOF Booth:
| Two- or three-row exhaust pit (downdraft only) |
| AdvanceCure Blade or Nozzle |
| Drive-thru configuration (four-wing not available on semi-downdraft models) |
| Six-tube, T8, LED light fixtures |
| Four- or six-tube, T8, LED corner or sidewall light fixtures |
| Three- or four-wing doors |
| Control panel upgrade |
Ultra XD CTOF Booths come in downdraft or semi-downdraft models:
| Heat System | BTFD or SpaceSaver |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 24′ |
| External Dimensions (W x H x L) | 14′ 8″ x 11′ x 24′ 8″ |
| # of Hip Light Fixtures | 8 |
| Single-Row Pit Length | 21′ |
| Heat System | BTFD or SpaceSaver |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 27′ |
| External Dimensions (W x H x L) | 14′ 8″ x 11′ x 27′ 8″ |
| # of Hip Light Fixtures | 8 |
| Single-Row Pit Length | 24′ |
| Heat System | BTFD or SpaceSaver |
| Internal Dimensions (W x H x L) | 24′ x 9′ x 24′ |
| External Dimensions (W x H x L) | 24′ 8″ x 11′ x 24′ 8″ |
| # of Hip Light Fixtures | 12 |
| Single-Row Pit Length | 21′ (2) |
| Heat System | BTFD or SpaceSaver |
| Internal Dimensions (W x H x L) | 24′ x 9′ x 27′ |
| External Dimensions (W x H x L) | 24′ 8″ x 11′ x 27′ 8″ |
| # of Hip Light Fixtures | 16 |
| Single-Row Pit Length | 24′ (2) |
GFS guarantees that our products meet or exceed all of the applicable codes related to the equipment. Our engineers regularly follow and contribute to the advancement of codes and standards that affect the industries in which we work. One of our engineers serves on the NFPA Technical Committee on Finishing Processes, a key standard in the finishing industry.
