The Ultra XD Paint Booth leads the industry in versatility and performance. With a choice of high-efficiency heat systems, intuitive control panels and downdraft or semi-downdraft airflow — along with superior lighting and contamination control — the Ultra XD will exceed any body shop’s expectations.
| Airflow | Ultra XD Paint Booths come standard with GFS’ patented Controlled Airflow Ceiling (in downdraft models) or the High-Performance Airflow Ceiling (in semi-downdraft models). Both ceilings allow for even distribution of air throughout the booth, providing excellent air filtration and precise contamination control. |
| Lighting | Designed for optimal brightness, Ultra XD spray booths feature four-tube sidewall light fixtures and either premium angled ceiling light fixtures (integrated into the Controlled Airflow Ceiling) or hip-style light fixtures (with the High-Performance Airflow Ceiling). All GFS light fixtures are ETL and ETL-C listed, and come complete with T8 ballasts and energy-efficient LED lamps. |
| Doors | A three-wing, dual-skin product door — with three observation windows — and one personnel door come standard with each pre-engineered Ultra XD Booth. Doors feature heavy-duty hinges for long-lasting performance. |
| Energy Savings | Shops can save up to 60 percent in electricity and 75 percent in fuel costs with economy mode, which automatically ramps the booth down and runs on idle when the booth is not in use. Providing further energy savings, SmartFlash on optional Logic controls allows up to 90 percent of the air to be recirculated during flash mode. |
| Controls | The Ultra XD Paint Booth comes standard with an easy-to-use Engage control panel. A touch screen interface and enhancements such as improved temperature and pressure control and alarm tracking allow for better, more reliable booth performance. Upgrading to the LOGIC 3 or LOGIC 4 control panel provides additional functionality and user-programmable features such as SmartFlash and SmartCure profiles. |
| Construction | Manufactured at our U.S. facility, Ultra XD spray booths are made with dual-skin, insulated, galvanized steel panels that are coated on both sides with a white, baked-on polyester topcoat, creating a rust-resistant cabin. Vertical wall panels reduce the number of joints and seams in the cabin’s construction, leaving you with a stronger, longer-lasting booth with a smooth fit and finish. |
| Single-row exhaust pit (downdraft only) |
| Floor leveling system |
| Choice of GUL2000, BT1200 or SpaceSaver® heat system (dependent on airflow) |
One of GFS’ greatest strengths is our ability to provide our customers with highly specialized products. The following pre-engineered options can be added to Ultra XD Paint Booths:
| AdvanceCure® Accelerated Airflow System |
| Four-wing, dual-skin product door |
| Two- or three-row exhaust pit upgrade (downdraft only) |
| Six-tube, T8 LED light fixtures |
| Raised basement (downdraft only; adds 13 inches to the overall height of the booth) |

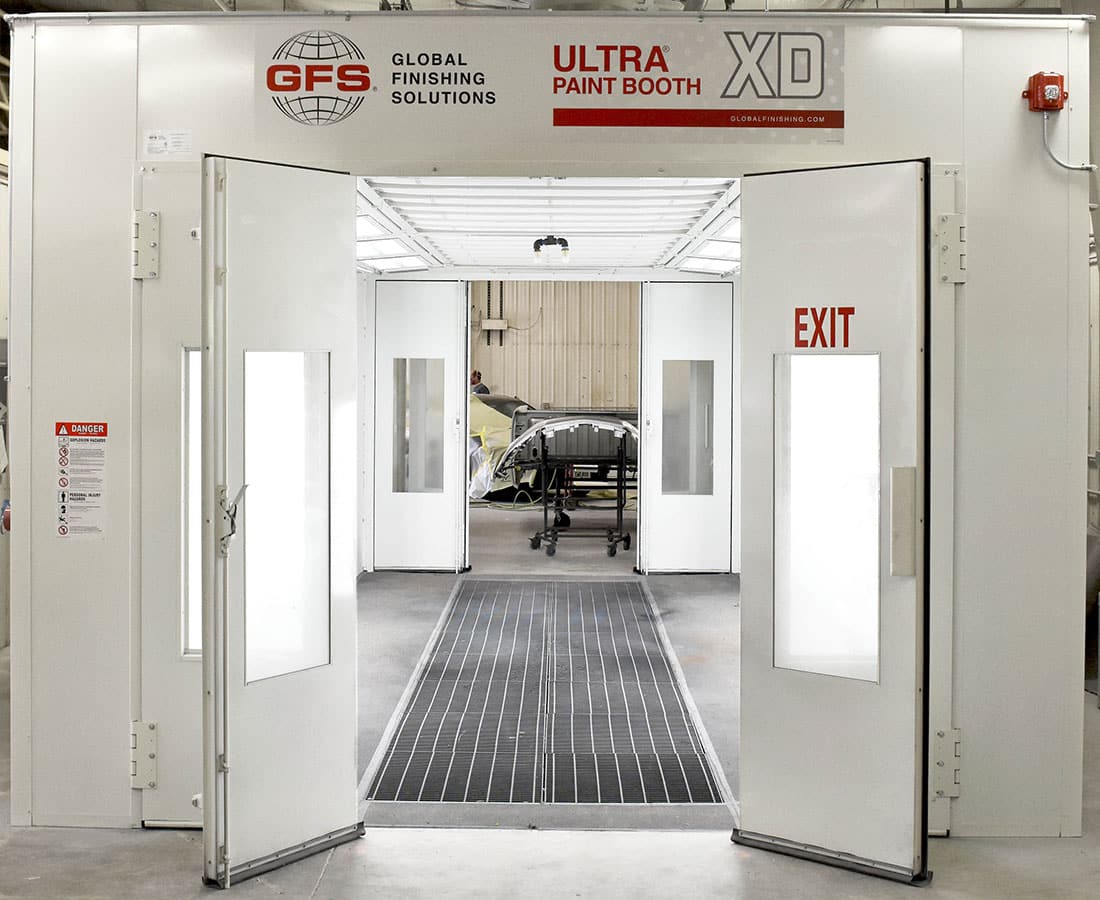

| Drive-thru configuration |
| Additional sidewall light fixtures |
| Sidewall observation windows |
| Heat System | BTRC or GUL |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 24′ |
| External Dimensions (W x H x L) | 14’5″ x 11′ x 24’5″ |
| 4-Tube Ceiling Light Fixtures | 8 |
| 4-Tube Sidewall Light Fixtures | 4 |
| Single-Row Pit Length | 21′ |
| Heat System | SpaceSaver |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 24′ |
| External Dimensions (W x H x L) | 15′ 4″ x 14′ 7″ x 24’5″ |
| 4-Tube Ceiling Light Fixtures | 6 |
| 4-Tube Sidewall Light Fixtures | 4 |
| Single-Row Pit Length | 21′ |
| Heat System | BTRC or GUL |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 27′ |
| External Dimensions (W x H x L) | 14′ 5″ x 11′ x 27′ 5″ |
| 4-Tube Ceiling Light Fixtures | 8 |
| 4-Tube Sidewall Light Fixtures | 6 |
| Dual-Row Pit Length | 24′ |
| Heat System | SpaceSaver |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 27′ |
| External Dimensions (W x H x L) | 15′ 4″ x 14′ 7″ x 27’5″ |
| 4-Tube Ceiling Light Fixtures | 8 |
| 4-Tube Sidewall Light Fixtures | 6 |
| Dual-Row Pit Length | 24′ |
| Heat System | BTRC or GUL |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 30′ |
| External Dimensions (W x H x L) | 14′ 5″ x 11′ x 30′ 5″ |
| 4-Tube Ceiling Light Fixtures | 10 |
| 4-Tube Sidewall Light Fixtures | 6 |
| Dual-Row Pit Length | 27′ |
| Heat System | SpaceSaver |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 30′ |
| External Dimensions (W x H x L) | 15′ 4″ x 14′ 7″ x 30′ 5″ |
| 4-Tube Ceiling Light Fixtures | 8 |
| 4-Tube Sidewall Light Fixtures | 6 |
| Dual-Row Pit Length | 27′ |
| Heat System | BTFD |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 24′ |
| External Dimensions (W x H x L) | 14′ 5″ x 11′ x 24′ 5″ |
| 4-Tube Ceiling Light Fixtures | 6 |
| 4-Tube Sidewall Light Fixtures | 4 |
| Heat System | BTFD |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 27′ |
| External Dimensions (W x H x L) | 14′ 5″ x 11′ x 27′ 5″ |
| 4-Tube Ceiling Light Fixtures | 8 |
| 4-Tube Sidewall Light Fixtures | 6 |
| Heat System | SpaceSaver |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 27′ |
| External Dimensions (W x H x L) | 15′ 4″ x 12′ 7″ x 27′ 5″ |
| 4-Tube Ceiling Light Fixtures | 8 |
| 4-Tube Sidewall Light Fixtures | 6 |
| Heat System | BTFD |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 30′ |
| External Dimensions (W x H x L) | 14′ 5″ x 11′ x 30′ 5″ |
| 4-Tube Ceiling Light Fixtures | 8 |
| 4-Tube Sidewall Light Fixtures | 6 |
| Heat System | SpaceSaver |
| Internal Dimensions (W x H x L) | 14′ x 9′ x 30′ |
| External Dimensions (W x H x L) | 15′ 4″ x 12′ 7″ x 30′ 5″ |
| 4-Tube Ceiling Light Fixtures | 8 |
| 4-Tube Sidewall Light Fixtures | 6 |
